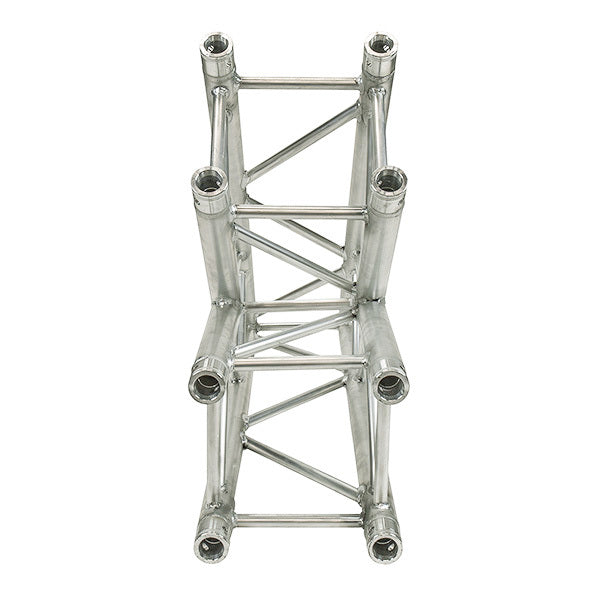

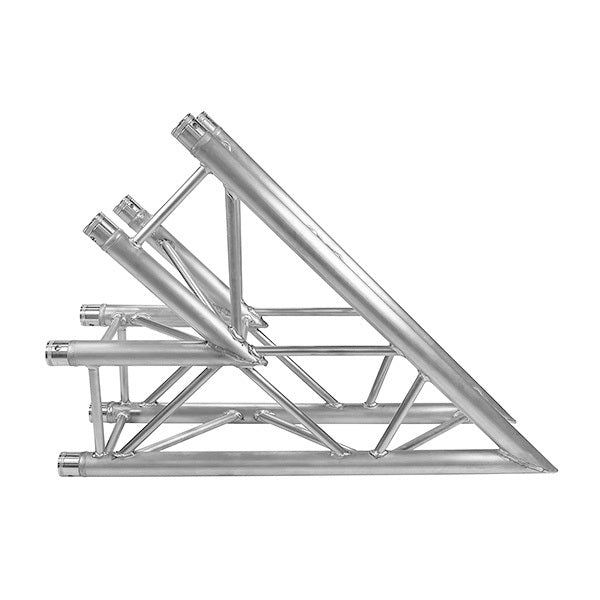

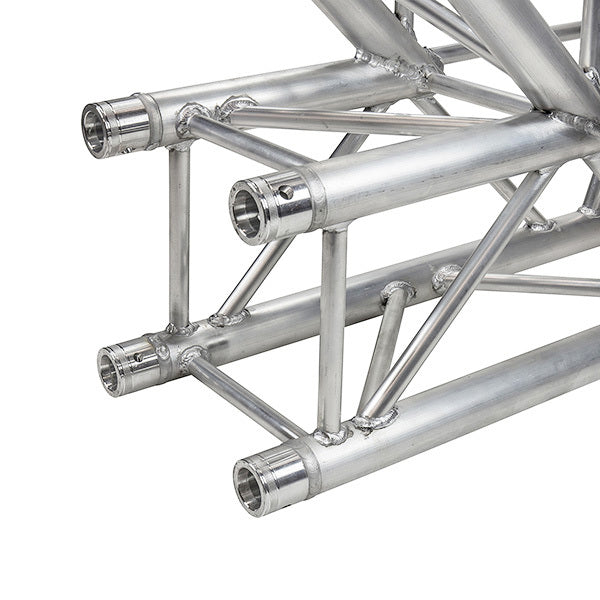

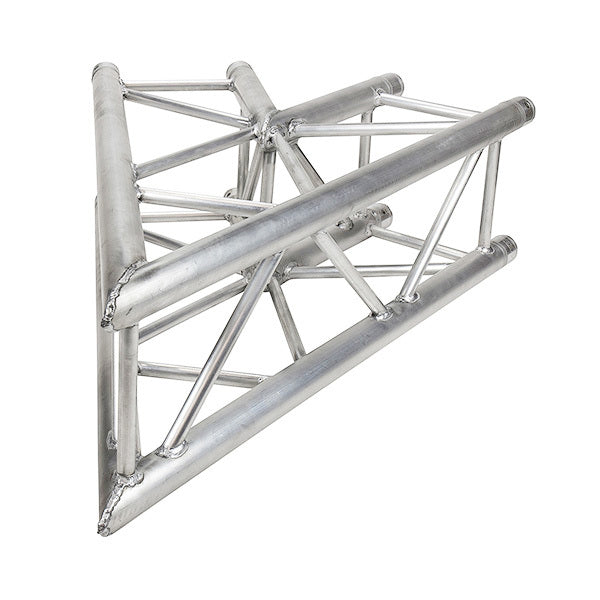

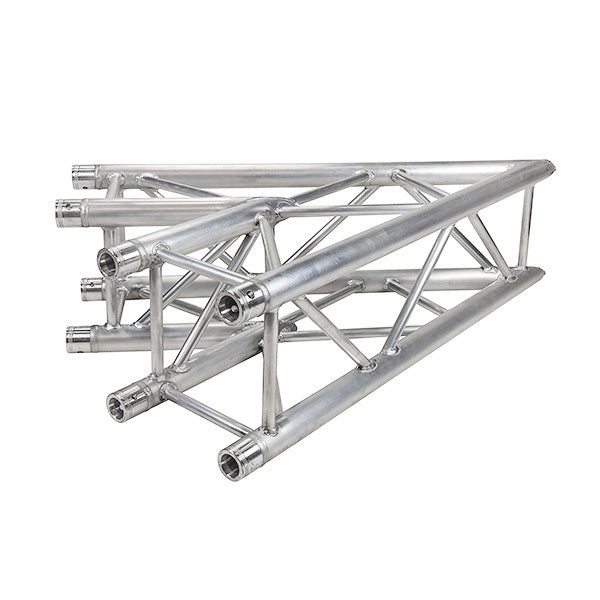

Titan AV 45 Deg Corner 290 Box truss
Titan AV 45 Deg Corner 290 Box truss is backordered and will ship as soon as it is back in stock.
Description
Description
This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. This box trussing is constructed from 6082-T6 aluminium 50 x 2mm main tube and 20 x 2mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the general public.
Features:
- Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
- 2 way 45 degree corner truss
- Set of spigots (conical couplers) and pins included in sale
- Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
- Warranty: 2 years
Specs:
- Weight: 8.5 kg
- Material: 6082-T6 Aluminium
- Main tube: 50mm (Wall thickness - 2mm)
- Braces: 20mm (Wall thickness - 2mm)
- 1 x Box Truss 2 way 45 degree corner 290mm
290mm Box Truss Load Table
| Span | Uniformly Distributed Load (UDL) | Deflection | Centre Point Load (CPL) | Deflection |
|---|---|---|---|---|
| M | KG/M | MM | KG | MM |
| 3 | 320 | 10 | 1260 | 12 |
| 4 | 285 | 24 | 1080 | 19 |
| 5 | 290 | 50 | 960 | 29 |
| 6 | 175 | 60 | 870 | 42 |
| 7 | 110 | 69 | 780 | 57 |
| 8 | 78 | 80 | 720 | 720 |
| 9 | 55 | 90 | 600 | 89 |
| 10 | 40 | 100 | 600 | 99 |
| 11 | 30 | 109 | 500 | 109 |
| 12 | 24 | 124 | 420 | 118 |
